Thermo ScientificTM  Ultra-Low Temperature Freezer TSX70086V

Confidence in quality and reliability
Universally better performance
Greener by design
User-centric design

Designed to meet the highest protection and sustainability standards for ultra-low storage and low storage

  • Re-designed, user interface with capacitive touch screen
  • Best peak variation of energy-efficient ultra-low freezers: less thant 5°C
  • Fastest door opening recovery on the market: 17 minutes
  • Best overall temperature uniformity: < 5.2°C with door openings, < 4.0°C with no door openings
  • Long warm-up time from -80°C to -50°C at 5.05 hours
  • Low energy usage: less than 8 kWh/day depending on size
  • Increased capacity of 840 boxes
  • With V-Drive Technology
  • Real-time online system insight with DeviceLink ™
  • Intended use can be extended up to -20°C based on GAMP 5 qualification

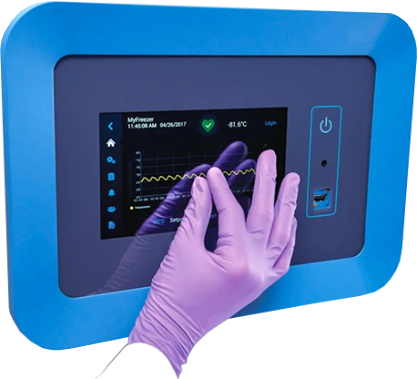

User friendly touch-screen interface and cabinet

  • NEW! Easy-to-use set-up wizard, event log, temperature mapping and data downloads
  • NEW! Capacitive touch – even when using latex gloves
  • Eliminate the need for a separate chart recorder with datalogging and temperature mapping features, all exportable via a built-in USB port
  • Advanced security features: alarm settings, password-protected controller, padlock-compatible doors and optional access card entry
  • Ergonomic design: comfortable door handle, eye-level touch-screen and shelf-level placement that doesn’t require floor-level loading of racks

Fully on board qualification of the ULT Freezers

Globalworx provides activities that, when accomplished, will provide confidence that the facility being validated will perform consistently to maintain an environment suitable for the storage of UCC products.

A qualification exercise generally consists of three sequential phases (IQ, OQ, and PQ) with the following purposes:

  • IQ: The purpose of IQ is to ensure that the premises, supporting utilities and equipment have been built and installed in compliance with their design specifications.
  • OQ: A successful OQ exercise provides assurance that the premises, supporting utilities and equipment operate in accordance with their design specifications. Generally, OQ is carried out on equipment when it is empty.
  • PQ: Following OQ, a PQ provides additional assurance through further testing that a specific process will consistently produce a product meeting its predetermined specifications and quality attributes. The outcome of a successful PQ exercise is a formal confirmation that the equipment, associated systems and operational processes can be “released” for routine use. In contrast to OQ, PQ is carried out on equipment that is loaded with product.

SOP Framework / Logistics process istallation

SOP Count Logistics OPERATION Condition NATIONAL LEVEL Central Store REGIONAL LEVEL Central Store/ Sub-National Store LOCAL LEVEL District Store SERVICE POINT
  PLANNING   Distance, Time Mode of transport, Ambient temp. Distance, Time Mode of transport, Ambient temp. Distance, Time Mode of transport, Ambient temp.
8 RECEIVING 80°C
20°C
+2°C to +8°C






8 STORAGE 80°C
20°C
+2°Cto +8°C







8 PICKN&PACK 80°C
20°C
+2°C to +8°C






9 PICKN&PACK 80°C
20°C
+2°C to +8°C






0 REVERSE LOGISTICS
0 MONITORING

The Thermo Scientific REVCO TSX70086V is characterized by innovative solutions and high energy efficiency. Medical samples can be cooled and frozen without any problems.

The choice of materials was also made based on ecological considerations. The water vapor-foamed insulation is based on high-quality polyurethane - this prevents chemical emissions. Natural refrigerants (R290/R170) also reduce the burden on the environment. The interior of the ultra-low freezer is made of either sheet steel or stainless steel. The outside of the housing is made of robust, cold-rolled steel with powder-baked paint.

A big plus point of the REVCO TSX70086V is its barely noticeable operating noise. This ensures a pleasant working environment that is not affected by machine noise. The ultra-low freezer's noise level is no more than 48 decibels. This puts it on a par with standard household refrigerators.

Despite its low operating noise and its environmentally friendly properties, the freezer is powerful: over time, the temperature variation is only 0.85 °C. In addition, the TSX70086V recovers quickly after the door is opened: the device returns to its original value in just 28 minutes. The time required to go from -80 °C to -50 °C, however, is longer - around 290 minutes are required. This is particularly useful in emergency situations such as power outages.

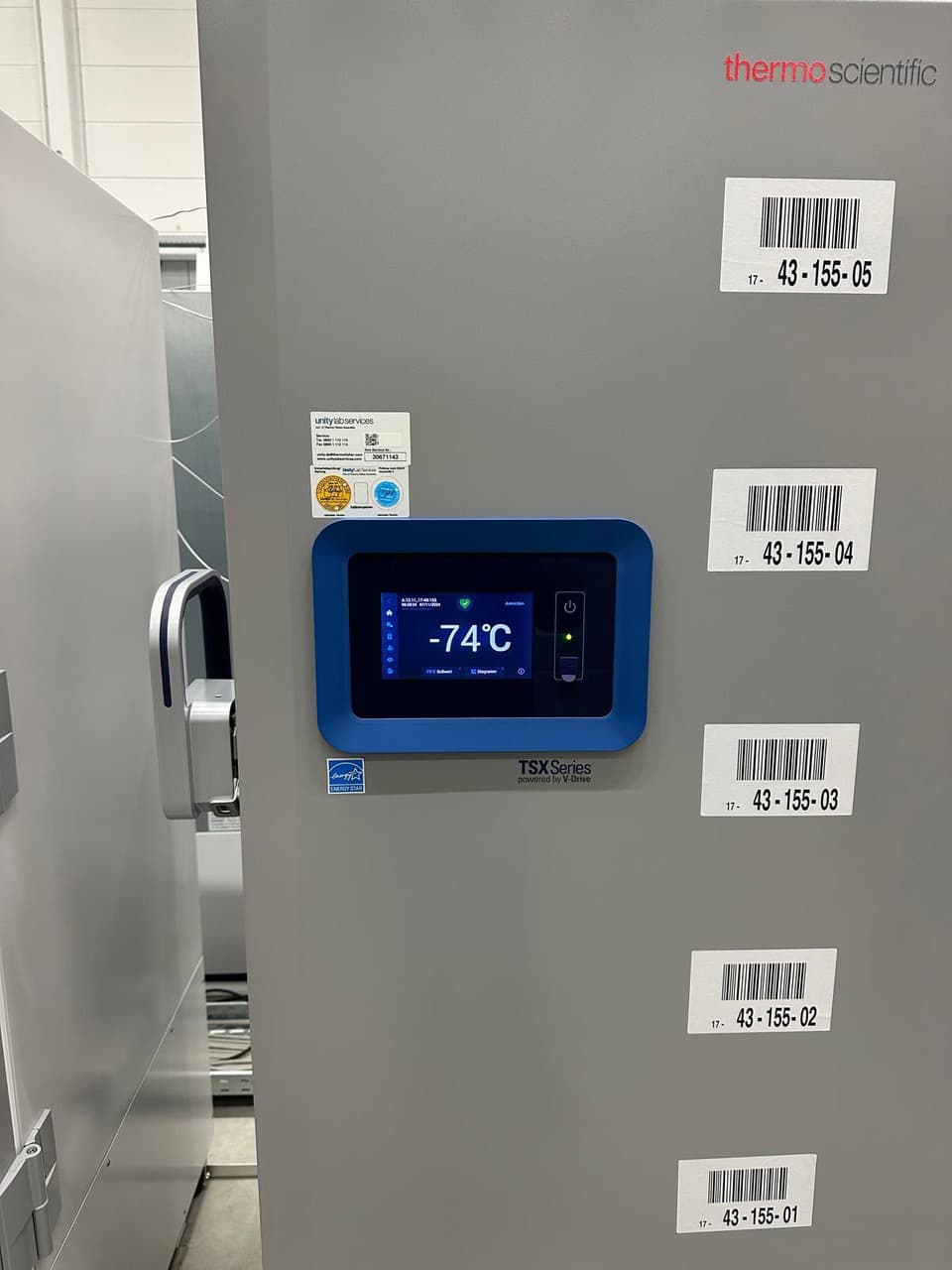

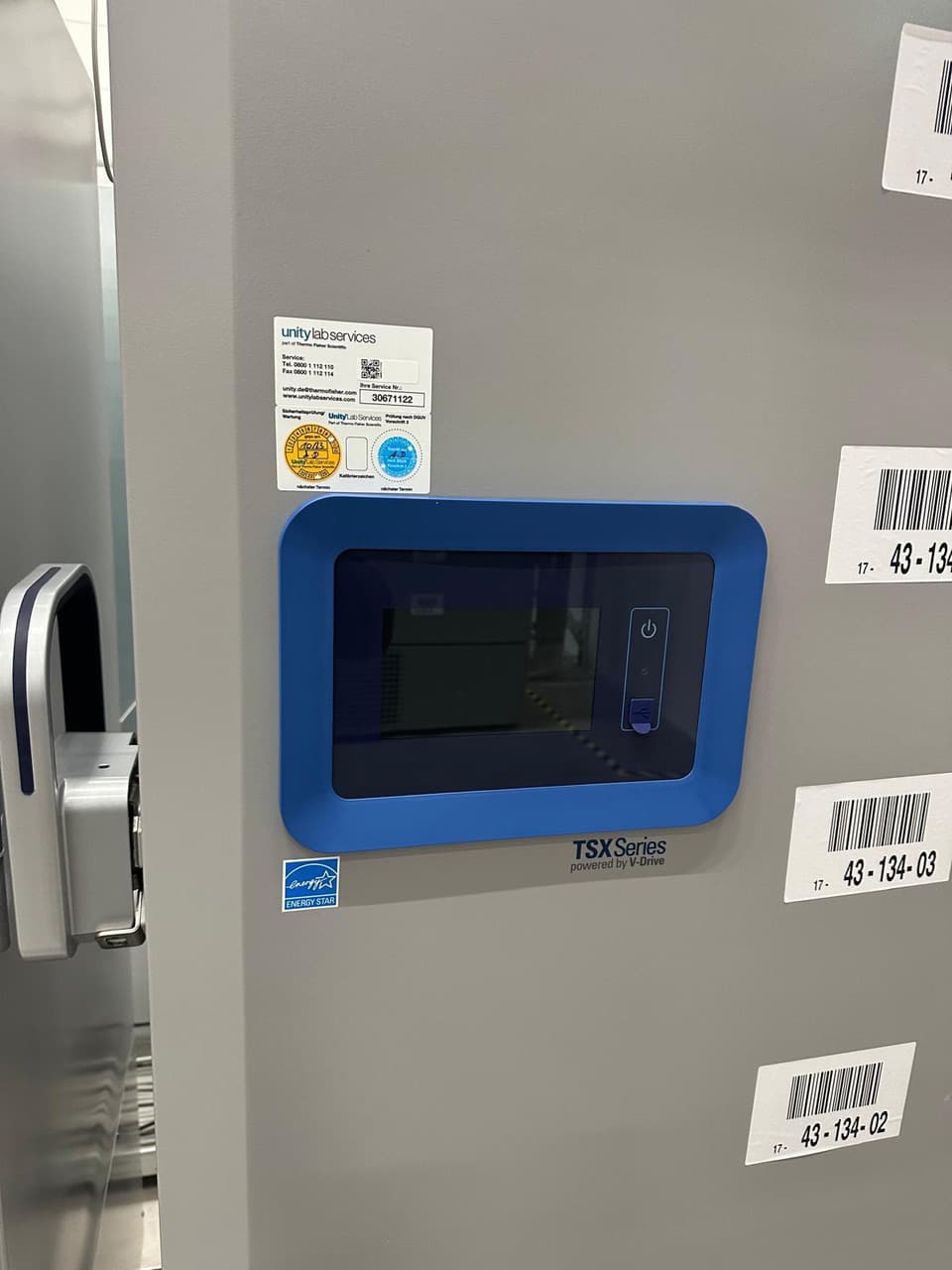

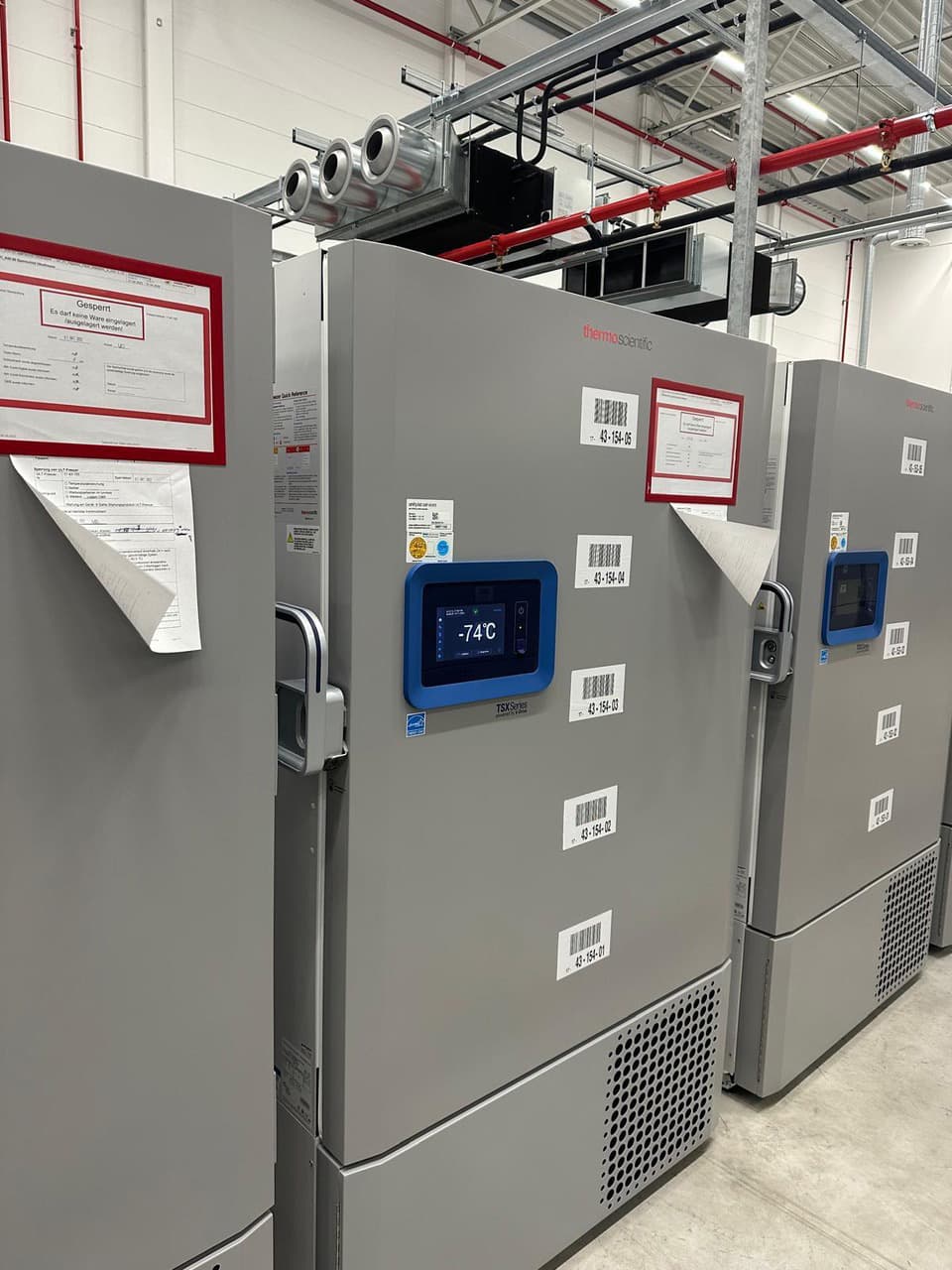

The device is controlled via a capacitive LCD touchscreen. There are numerous useful functions and information to choose from. This can mean viewing logs, but also setting alarm values ​​or saving data on a USB stick. Password protection provides the necessary security, and the door can also be locked.

Thermo Scientific's V-Drive technology is particularly successful. It automatically detects the required cooling capacity. If the ultra-low freezer is not in use for several hours, the speed and performance of the compressor are automatically reduced. This saves electricity and ensures quiet operation. If, however, the TSX70086V is in continuous operation, the speed is increased to ensure that it cools down to the original temperature as quickly as possible.

Energy efficient, environmentally friendly and powerful: The Thermo Scientific REVCO laboratory ultra-low temperature freezer TSX70086V combines all these features and is therefore the ideal place to store medicines, pharmaceuticals and other medical samples.

The TSX70086V also scores points in terms of durability: 5-year material guarantee on all parts and 12-year material guarantee on the two compressors are unparalleled.

Capacity L 949L
2ml samples Up to 84,000
Cardboard 2-inch boxes Up to 840
Readable online Yes (DeviceLink ™)
Certificates / Compliance CE, ENERGY STAR
Description TSX series Ultra-Low Freezers, 700-Box Capacity, 230V, 50Hz
Door style 1 outside, 2 inside
Dimensions (D x W x H) Exterior 95.5 x 114.8 x 198.1 cm
Dimensions (D x W x H) Interior 71.9 x 101.6 x 130.1 cm
Plug Type European
Temperature range -40 ° C to -86 ° C
Type Ultra Low Freezer, standing
Electrical requirements 230V, 50Hz
Regulatory Approvals CE
Smart View Compatibility Smart-Vue Compatible
Weight (Metric) 353kg
Product line TSX series
Current strength 6.1 / 10
Capacity 949L
Defrost Manual
Screen Touchscreen LCD
Hertz 50hz
Insulation Water-blown foam (EU-F gas compliant)
Refrigerant R290 at first stage, R170 With R290 Mix at second stage (EU F-Gas compatible)
Planks 3



Globalworx GmbH
Klammsbosch 10
77880 Sasbach-Obersasbach
Germany

+49 1515 333 2851 / info@globalworx.eu

!

Attention!!!! Take advantage of this unique offer to purchase a high-class freezer at an extraordinarily fair price.
